تومان120,600,000
مشخصات محصول :
3 عدد در انبار
شرکت آراد صنعت کهربا با بیش از ده سال سابقه در صنایع مختلف کشور، در زمینه تولید انواع تابلوهای برق و کنترل و نیز تامین و خدمات پس از فروش انواع تجهیزات تابلوهای برق و کنترل فعالیت دارد.ما به عنوان تنها وارد کننده و نماینده رسمی محصولات مگمیت چین در ایران، افتخار داریم که انواع اینورتر و درایو کنترل دور موتور این برند معتبر را با بهترین خدمات پس از فروش به مشتریان ارائه می دهیم.
| Specifications | Item | Category |
|---|---|---|
| 3 phase 380V ~ 480V; fluctuation ±10%, allowable -15% ~ +10% (323V ~ 528V); phase deviation <3%; IEC 61800-2 compliant | Rated voltage (V) | Input Power |
| 92 | Rated current (A) | Input Power |
| 50/60Hz (±2Hz) | Rated frequency (Hz) | Input Power |
| 45 kW | Rated power | Output Power |
| 91 | Rated current (A) | Output Power |
| 0 – 480V | Rated voltage (V) | Output Power |
| V/F: 0.00 ~ 599.00 Hz; Vector control: 0.00 ~ 599.00 Hz | Output frequency (Hz) | Output Power |
| 150% for 1 min; 180% for 3 sec; 200% for 1 sec | Overload capacity | Output Power |
| V/F, PG card-less vector, closed-loop vector | Control modes | Inverter Control |
| 599 Hz (all modes); HF pulse: 3500 Hz | Max. output frequency | Inverter Control |
| 1:200 (without PG); 1:1000 (with PG) | Speed adjustment range | Inverter Control |
| ±0.5% (without PG); ±0.02% (with PG) | Speed accuracy | Inverter Control |
| ±0.3% (without PG); ±0.1% (with PG) | Speed fluctuation | Inverter Control |
| <20 ms (without PG); <10 ms (with PG) | Torque response | Inverter Control |
| ±5% (without PG); ±3% (with PG) | Torque control accuracy | Inverter Control |
| 0.25 Hz 150% (without PG); 0.00 Hz 180% (with PG) | Starting torque | Inverter Control |
| Fast tracking, torque limit, multi-speed reference, auto-tuning, S-curve accel/decel, slip compensation, fan speed control, energy saving, PID, sleep mode, Modbus, auto restart, DC braking, dynamic braking, simple PLC, AVR, dual-motor parameter sets, fieldbus, master-slave control | Main functions | Functions |
| 0.01 Hz – 599 Hz | Frequency range | Functions |
| 0.1 – 6000.0 sec (0.1 sec steps) | Accel/decel time | Functions |
| Integrated; 0 – 100% | Dynamic braking | Functions |
| Freq: 0.00–599 Hz; Time: 0.1–50 sec; Current: 0–100% rated current | DC braking | Functions |
| Overvoltage, undervoltage, overload, short circuit, overcurrent, overheating, phase loss, etc. | Protection functions | Protection |
| ≥95% | Efficiency | Other |

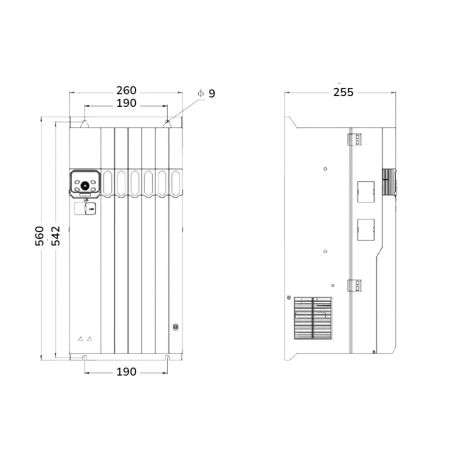

| Wall mounting, vertical, air cooled; clearance: top/bottom ≥100 mm, sides ≥10 mm | Installation | Other |
| IP20 | Protection standard | Other |
| Air cooled | Cooling method | Other |
| Indoors, avoid sunlight, dust, gas, oil mist, vapor, dripping water, salt | Location | Operating Environment |
| ≤1000 m (no derating); >1000 m: derate 1% per +100 m; max 3000 m | Altitude | Operating Environment |
| -10℃ ~ +50℃ (derating above 40℃); ΔT <0.5℃/min | Ambient temperature | Operating Environment |
| 5% – 95% RH, non-condensing | Humidity | Operating Environment |
| 2–9 Hz, 1.5 mm; 9–200 Hz, 5.9 m/s² (0.6 g) | Noise/vibration | Operating Environment |
| -30℃ ~ +70℃ (≤60℃ long term; 60–70℃ short term) | Storage temperature | Operating Environment |
| ارسال | سراسر کشور |
|---|
